White painted aluminium profile for drywall 35x49mm, 3 metres

SKU: LLP-DW04-06-W3
Download the DatasheetPhotometric TestDownload BIM file for Revit
*
*

Designed in Italy

PROFILES RANGE CATALOGUE CONTACT US

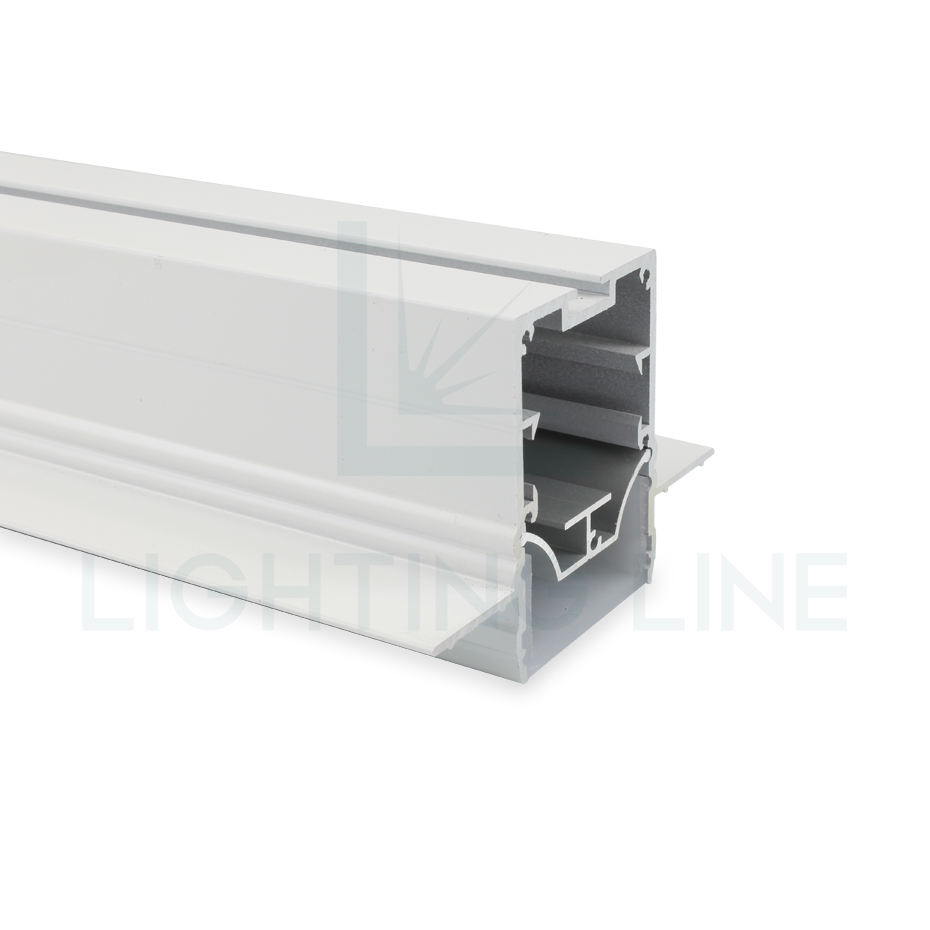

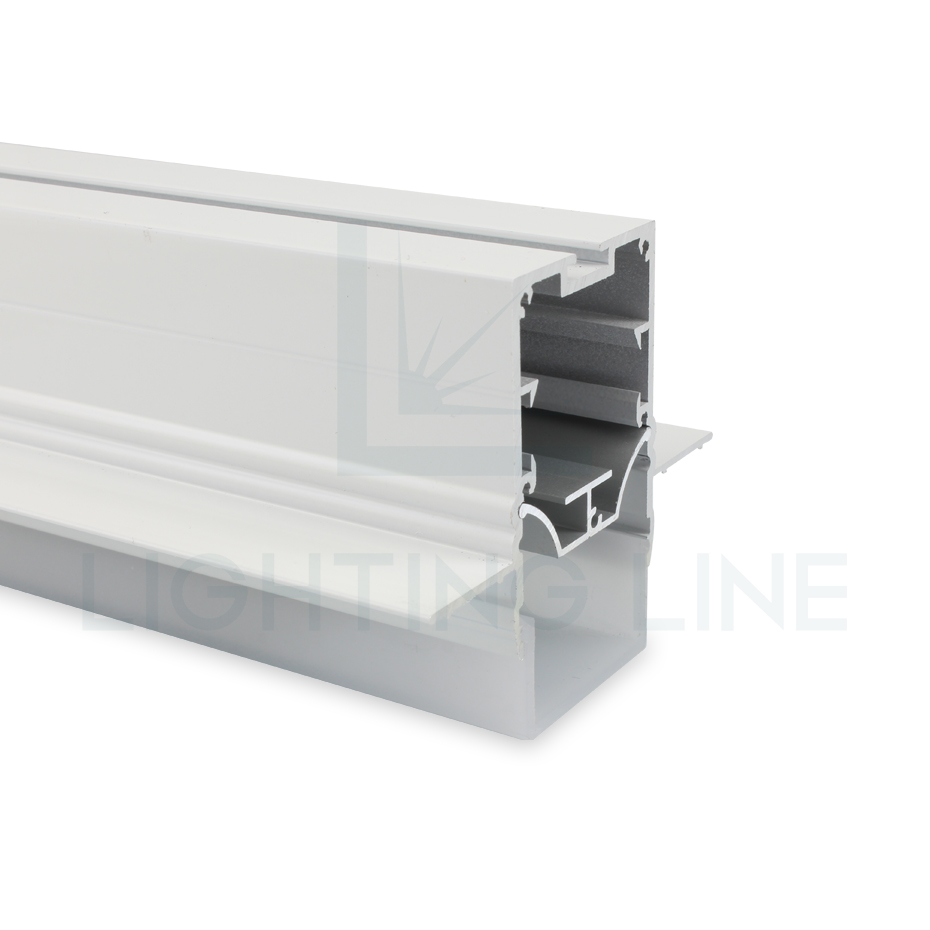

White painted aluminium profile for drywall 35x49mm. Length 3 meters.

ATTENTION: led strips, end caps, mounting clips and accessories are not included in the price. The length of the profiles and diffusers has a tolerance of +/- 2 mm.


Led strips alluminium profile LLP-DW04-06-W3


Photometric test


Photometric test Led strips alluminium profile LLP-DW04-06-W3
Opal lower diffuser step 1: -32%
Frosted lower diffuser step 1: -32%
Photometric test Led strips alluminium profile LLP-DW04-06-W3
Opal lower diffuser step 2: -41%
Frosted lower diffuser step 2: -41%
Photometric test Led strips alluminium profile LLP-DW04-06-W3
52° lens diffuser : -17%

Photometric test Led strips alluminium profile LLP-DW04-06-W3
90° lens diffuser: -19%

Photometric test Led strips alluminium profile LLP-DW04-06-W3
Asymmetric lens diffuser: -21%

Photometric test Led strips alluminium profile LLP-DW04-06-W3
with double asymmetry° lens diffuser: -14%



The cover in position 1 is placed outside the aluminium profile and in position 2 is flat. Other positions refer to lens (see the photometric test).

Installation


Installation led strips alluminium profile LLP-DW04-06-W3

Products specifications
Width x Height75 x 49 mm
Length available3 meters
Suitable PCBUp to 20 mm
Diffusers availableOpal, frosted
MaterialAluminum
