Sorry - this product is no longer available

Aluminium profiles for plasterboard 35x49mm, 3 meters

SKU: LLP-DW04-06-S3
Download the DatasheetPhotometric TestDownload BIM file for Revit
*
*
*

Designed in Italy

PROFILES RANGE CATALOGUE CONTACT US

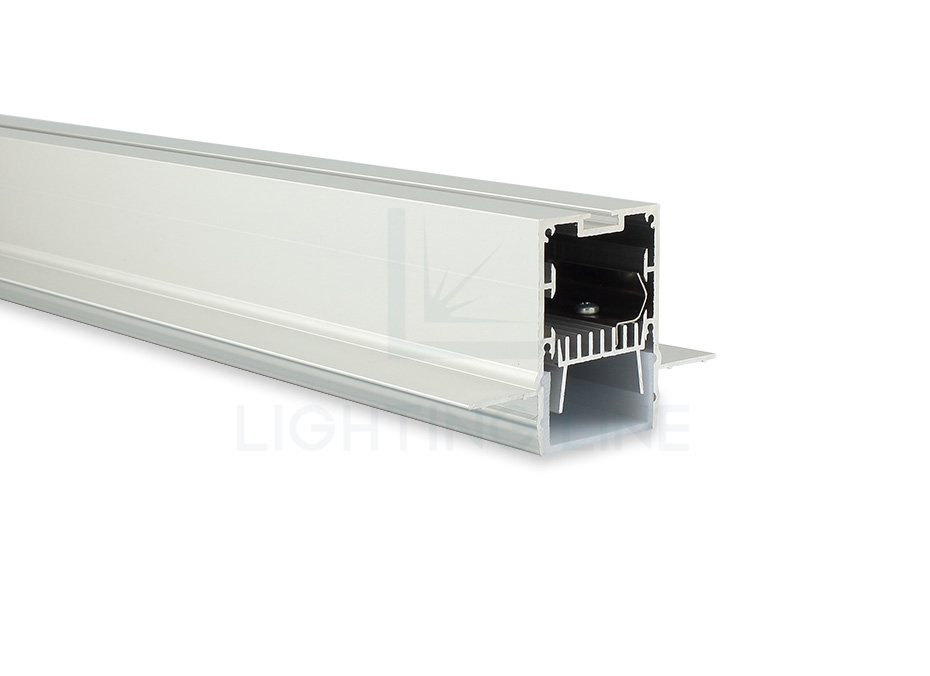

Aluminium profiles for plasterboard 35x49mm. Length 3 meters.

%DET%

ATTENTION: led strips, end caps, mounting clips and accessories are not included in the price. The length of the profiles and diffusers has a tolerance of +/- 2 mm.


Led strips alluminium profile LLP-DW04-06-S3


Photometric test


Photometric test Led strips alluminium profile LLP-DW04-06-S3
Opal lower diffuser step 1: -38%
Frosted lower diffuser step 1: -40%
Photometric test Led strips alluminium profile LLP-DW04-06-S3
Opal lower diffuser step 2: -42%
Frosted lower diffuser step 2: -44%

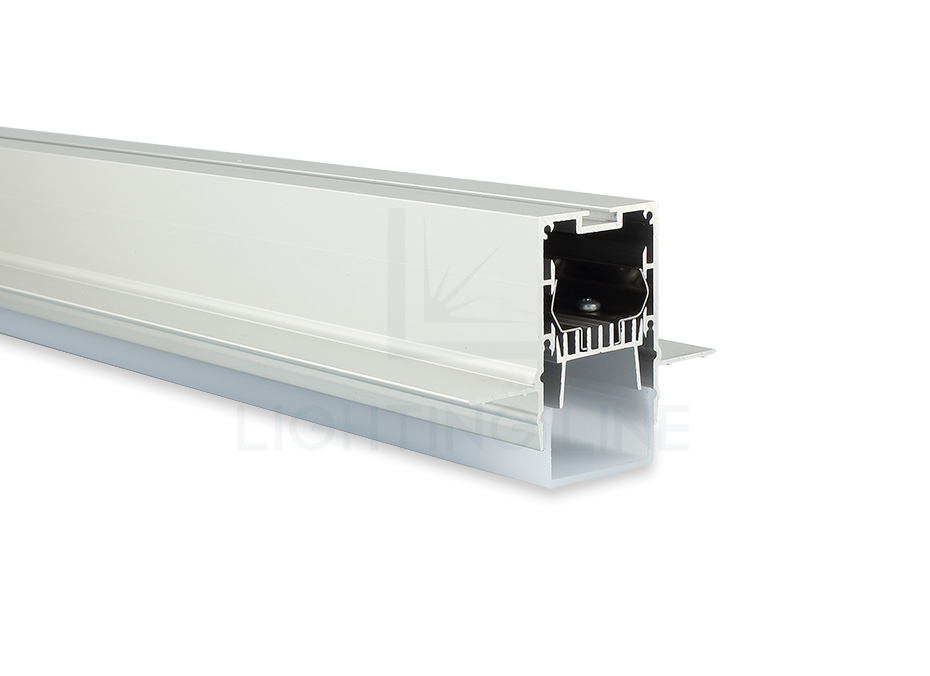

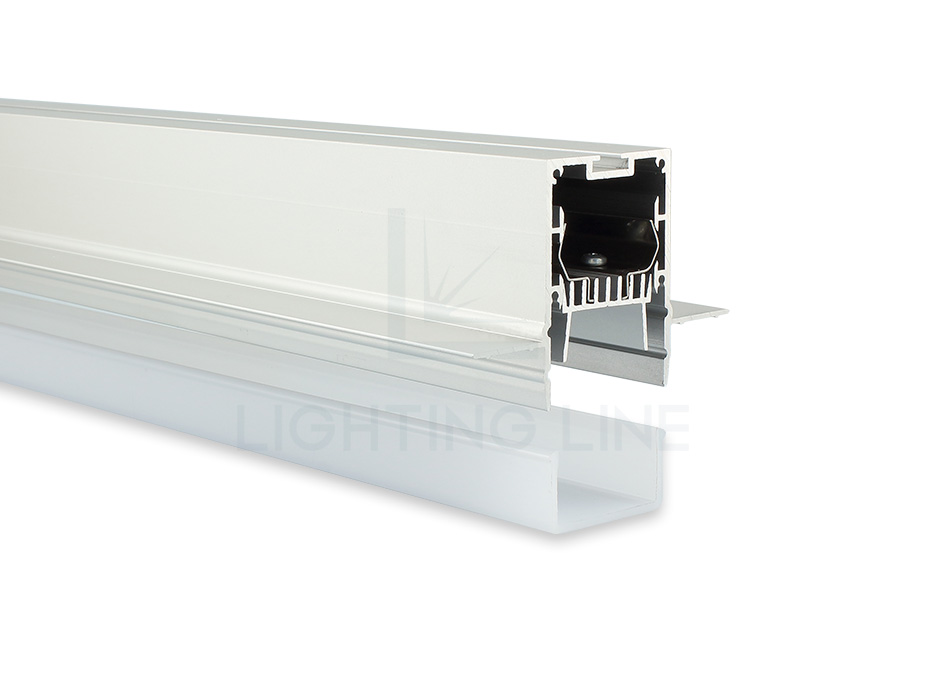

The cover in position 1 is placed outside the aluminium profile and in position 2 is flat.

Installation


Installation led strips alluminium profile LLP-DW04-06-S3

Products specifications
Width x Height75 x 49 mm
Length available3 meters
Suitable PCBUp to 20 mm
Diffusers availableOpal, frosted
MaterialAluminum
Profile codeLLP-DW04-06-XX
